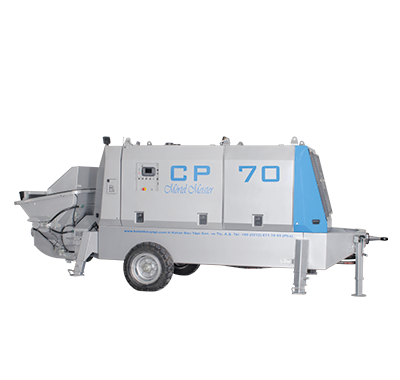

MÖRTEL MEİSTER CP 70

MÖRTEL MEİSTER CP 70

When you need a concrete pump, the CP70, equipped with a Stage V engine that is environmentally friendly and delivers 50-70 m³ of concrete per hour, provides all the pumping capacity you need for medium-volume concrete pumping applications.

Category: Concrete Pump

Engine

:

Deutz 105 kW Stage V

Manuel Flow Rate

:

Min. 50m3/h - Max. 70m3/h

Max. Theoretical Pressure of the Concrete

:

71 / 106 bar

Diameter of the Transfering Cylinder

:

200 mm

The Pressure of the Piston

:

1400 mm

Valve System of the Concrete

:

S-Valve

Max. Pressure of the Hydraulic

:

350 bar

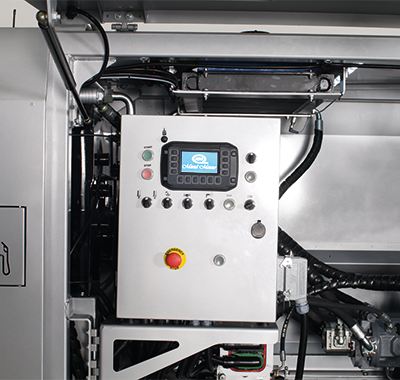

Remote Control

:

*100 m

Max. Aggregates Size

:

32 mm

Hydraulic Tank Capacity

:

170 Litres

Fuel Tank

:

125 Litres

Concrete Discharge Diameter

:

125 mm

Tank Volüme

:

320 Litres

Dimension L/W/H

:

5400 / 2000 / 2150 mm

Total Weight

:

4500 Kg

Drawbar and Axle

:

Within the construction site
